SM3300 power sink選件介紹

SM 18-220 訂貨代碼P306

SM 66-AR-110 訂貨代碼P308

SM 100-AR-75 訂貨代碼 P309

SM 330-AR-22 訂貨代碼 P310

SM 660-AR-11 訂貨代碼 P311

電源接收器選項允許電源吸收反饋到設備的功率。內部模塊感測電源狀態并吸收輸出端子上的電流，從而保持恒定的輸出電壓。當電源在低負載條件下步進編程為較低電壓時，電源接收器選項允許更快的響應。

可吸收高達300W的峰值功率

無論輸出功率是正還是負（源和匯），都能保持輸出電壓設置

為電機提供PWM速度控制的理想解決方案。這些系統通常在制動動作期間將電力返回給電源

適用于在空載條件下需要快速下編程的ATE系統的理想解決方案

生成汽車波形（快速）

Power Sink Specifications

Sink Power Ratingmax. peak power (electronically limited)max.continuous power (Tam.= 25 *C)max. continuous power (Tam.= 50 *C)

Max. duration Sink Peak PowerFaik =Pmx,Tamb = 25 9C

Duty Cycle for use at Peak PowerPsnk =Pmx , Tamb = 25 9C

Max. Sink Current(V.>=2 Vand P <= Pma)

Prtection

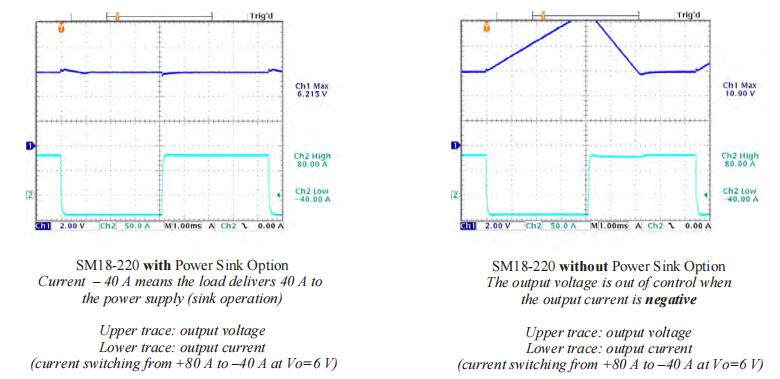

Recoven time/ DeviationVo=6V,le:+100A--30 Arecovery within 100 mv/ deviation:

Vo=15V,l.:+100A--10Arecovery within 100 mv/ deviation:

Vo=24V,1.:+70A--7.5Arecovery within 100 mv/ deviation:

Wo=60V,1.:+35A--3Arecovery within 100 mv' deviation.

Vo =300 V1. +8A →-0.5 Arecovery within i v /deviation

Vo =600 Vle +4A --0.25 Arecovery within 1 V /deviation:

(oad current swiches from posifvelo negafive)

Programming Down SpeedFall time at no load (90-10%)Fall time at no load wihout Power Sink

Fall time at no load (90-10%)Fall time at no load wihout Power Sink

Unit with Fast Programming Option

Fal time atno load (90-10%)Fall time atno load whout Power sink

Fall time at no load (90-10%)Fall time at no load wifhout Power Sink

aralleland Series operationRefer to power sink manual fordelails and restrictions.

SM18-220Option P306

SM66-AR-110Option P308

SM100-AR-75Option P309

SM330-AR-22Option P310

SM660-AR-11Option P311

300VV300VV275VV

continuous@Psx=300V

100%@Pnk=300W

Limitedat75A
